LayMesh8-bit RGB TIFF

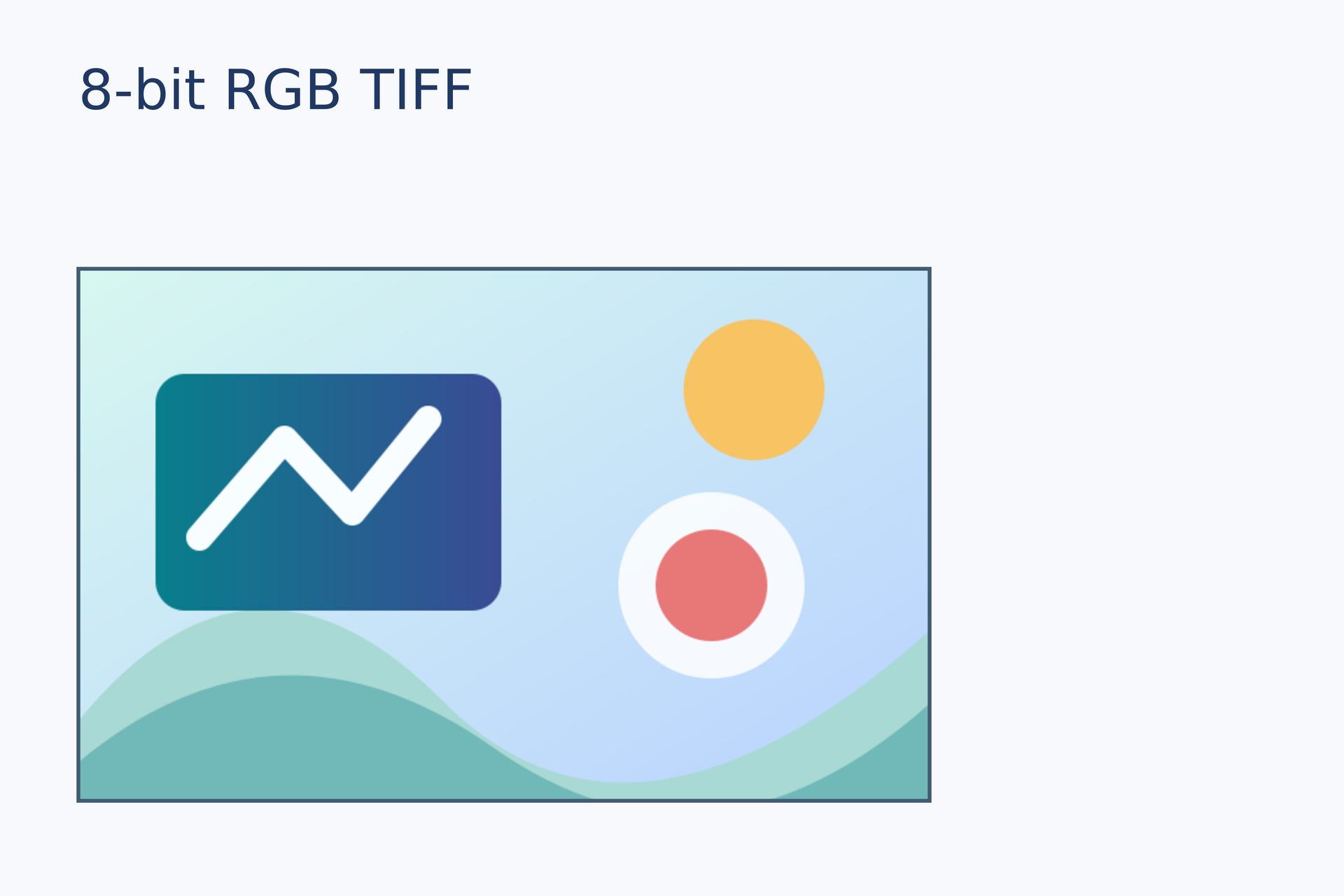

picture = image(src="../assets/rgb8.tiff")placed = page.add(picture,size=(76 mm, auto), target=page.top_left, offset=(7 mm, 24 mm))frame = rect(size=(76 mm, 47.5 mm), fill="none", border_color="#435b72", border_width=0.35 mm)page.add(frame, target=placed.top_left)# Gallery: images / tiff-rgbpage = canvas(name="8-bit RGB TIFF", size=(120 mm, 80 mm), background="#f7f9fc")font = "DejaVu Sans"heading = text(content="8-bit RGB TIFF", font_family=font, font_size=14 pt, color="#203864")page.add(heading, target=page.top_left, offset=(7 mm, 5 mm))# BEGIN DEMOpicture = image(src="../assets/rgb8.tiff")placed = page.add(picture,size=(76 mm, auto), target=page.top_left, offset=(7 mm, 24 mm))frame = rect(size=(76 mm, 47.5 mm), fill="none", border_color="#435b72", border_width=0.35 mm)page.add(frame, target=placed.top_left)# END DEMOPreview
Background
Dependencies
examples/gallery/assets/rgb8.tiffexamples/gallery/images/tiff-rgb.lay
Reproduce
laymesh validate examples/gallery/images/tiff-rgb.laylaymesh render examples/gallery/images/tiff-rgb.lay -o figure.svglaymesh render examples/gallery/images/tiff-rgb.lay -o figure.pdflaymesh render examples/gallery/images/tiff-rgb.lay -o figure.png --dpi 300
