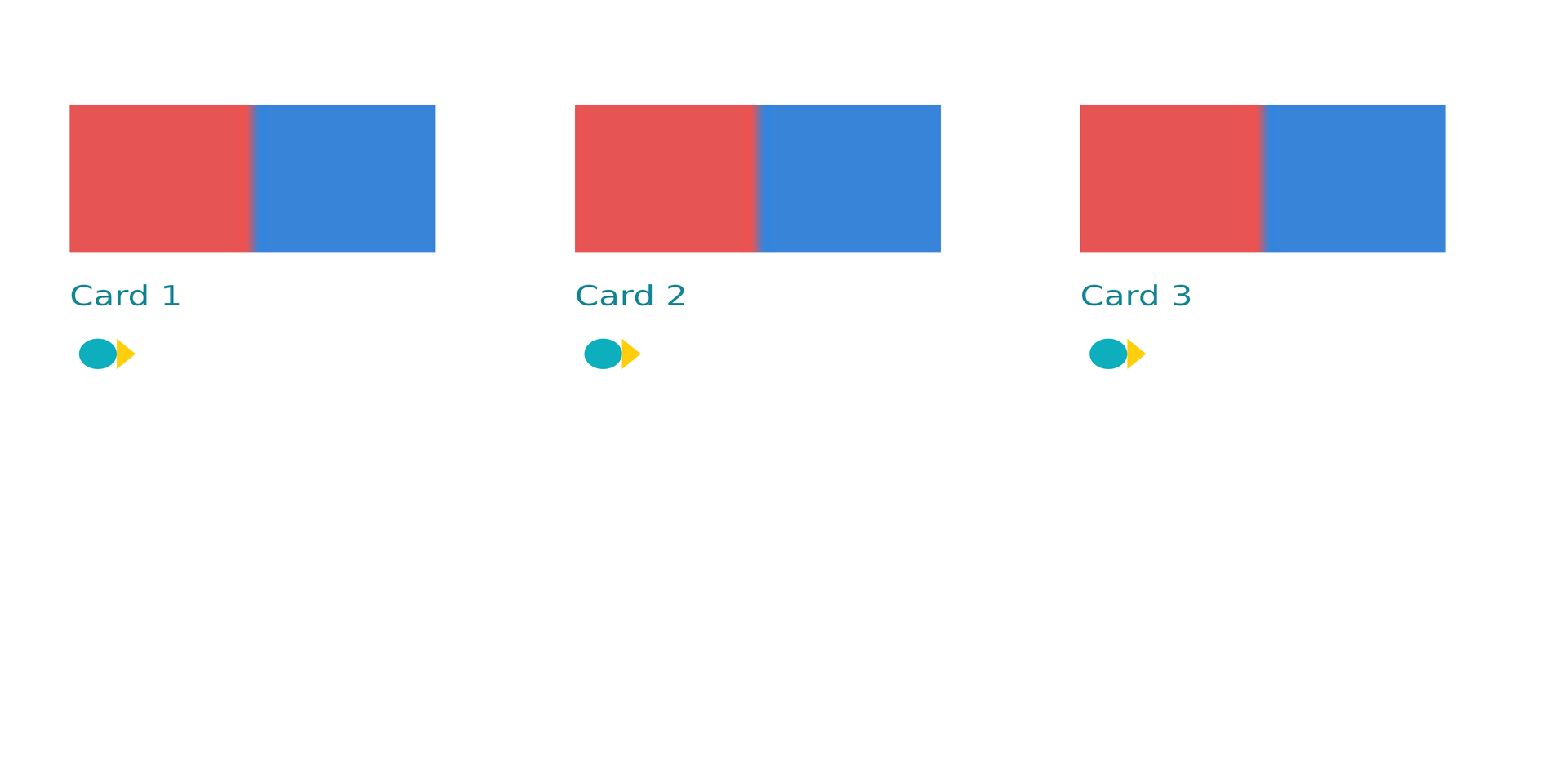

Scripted

1import { card } from "./components/card.lay"2 3page = canvas(name="LayMesh components", size=(180 mm, 90 mm), background="#ffffff")4spacing = 58 mm5for index in range(3) {6  label = "Card " + str(index + 1)7  tile = card(label)8  placed = page.add(tile,size=(42 mm, auto), target=page.top_left,9                    offset=(8 mm + index * spacing, 12 mm), opacity=0.95)10}

1import { photo, icon, gap, accent } from "./materials.lay"2 3## @lang zh-CN4## 创建带有标题和图标的可复用照片卡片。5## @param {string} label - 标题，可包含行内公式。6## @param {length} width - 照片宽度；显式单位固定其物理尺寸。7## @returns {group} 带有测量边界和定位锚点的可复用卡片。8## @example9## item = card("结果", width=34mm)10## @lang en11## Build a reusable photo card with a caption and icon.12## @param {string} label - Caption, including optional inline mathematics.13## @param {length} width - Photo width; an explicit unit fixes its physical size.14## @returns {group} A reusable card with measured bounds and placement anchors.15## @example16## item = card("Result", width=34mm)17export function card(label, width=34 mm) {18  picture = group()19  picture.add(photo,size=(width, auto), target=picture.top_left)20 21  caption = group()22  title = text(content=label, font_family="DejaVu Sans", font_size=9 pt, color=accent)23  caption.add(title, target=caption.top_left)24  caption.add(icon,size=(7 mm, auto), target=caption.top_left, offset=(0 mm, 6 mm))25 26  content = group()27  placed = content.add(picture, target=content.top_left)28  content.add(caption, target=placed.bottom_left, offset=(0 mm, gap))29  return content30}

1# Paths belong to this module, even when another module imports these values.2## Reusable photograph shared by card components.3## @type {image}4export photo = image(src="../assets/photo.png")5## Reusable vector icon for card captions.6## @type {image}7export icon = image(src="../assets/icon.svg")8## Physical spacing between the photograph and its caption.9## @type {length}10export gap = 3 mm11## @lang zh-CN12## 标题默认强调色。13## @type {color}14## @lang en15## Default caption accent color.16## @type {color}17export accent = "#087f8c"
